Locking Screw Usage (RS-01-XX-S & RSP-01)

Both RS-01-XX-S (including RS-01-BL-S) and RSP-01 have a locking screw for securing the product to the wall plate.

This requires loosening off prior to separation of the product from the wall plate and then can be tightened post-mounting of the product in order to secure it in place.

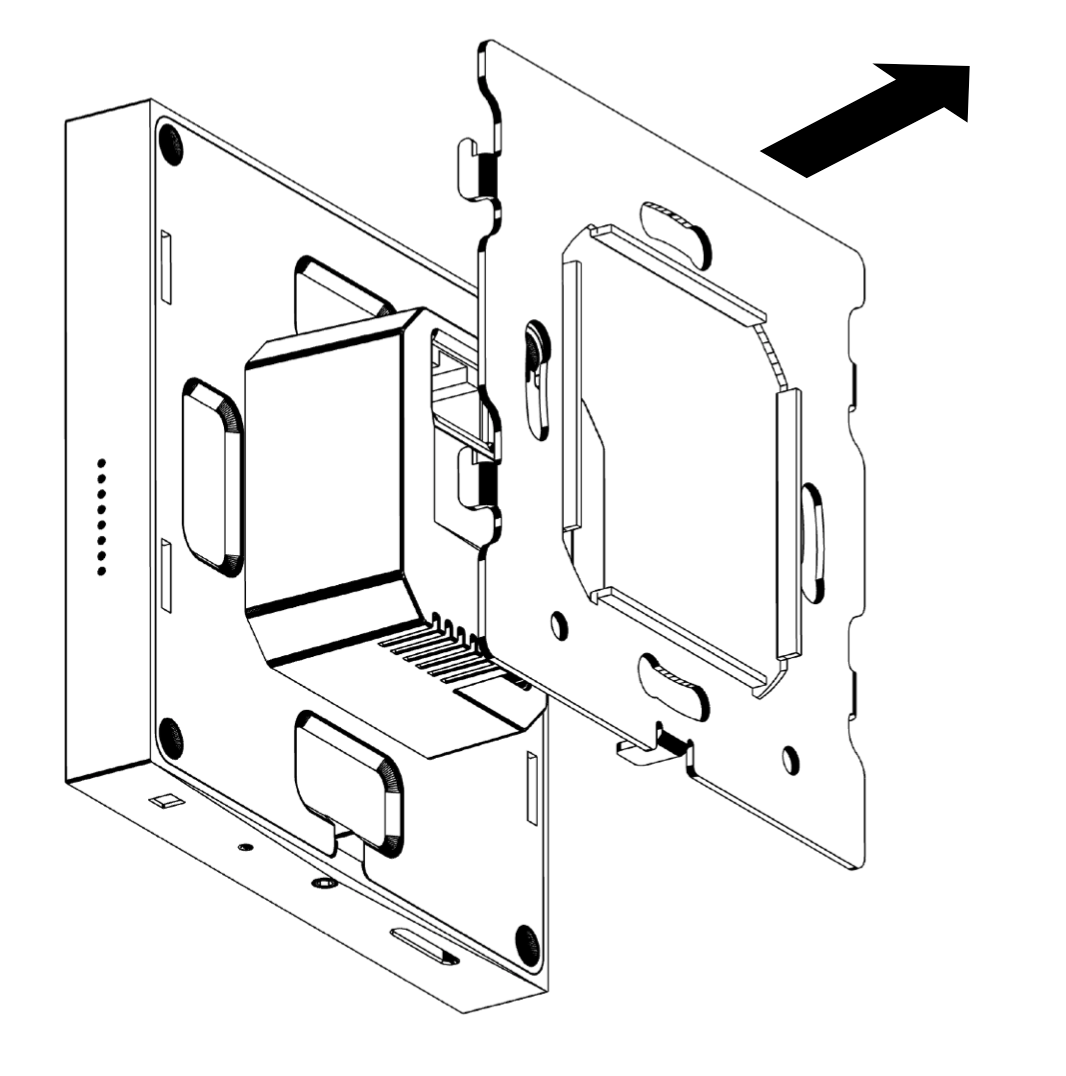

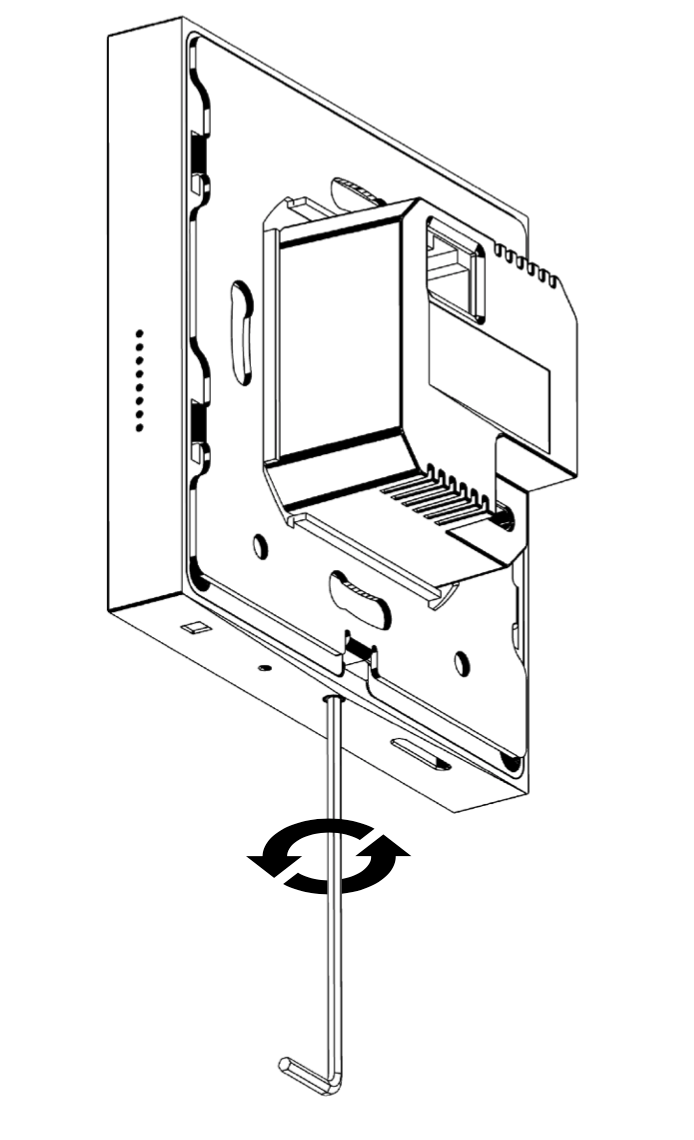

1. Use the locking key to loosen the locking screw until the plate can be slide down and removed. Note that it is not necessary to remove the screw completely.

2. Wire the product & mount the wall plate as per the specific product requirements

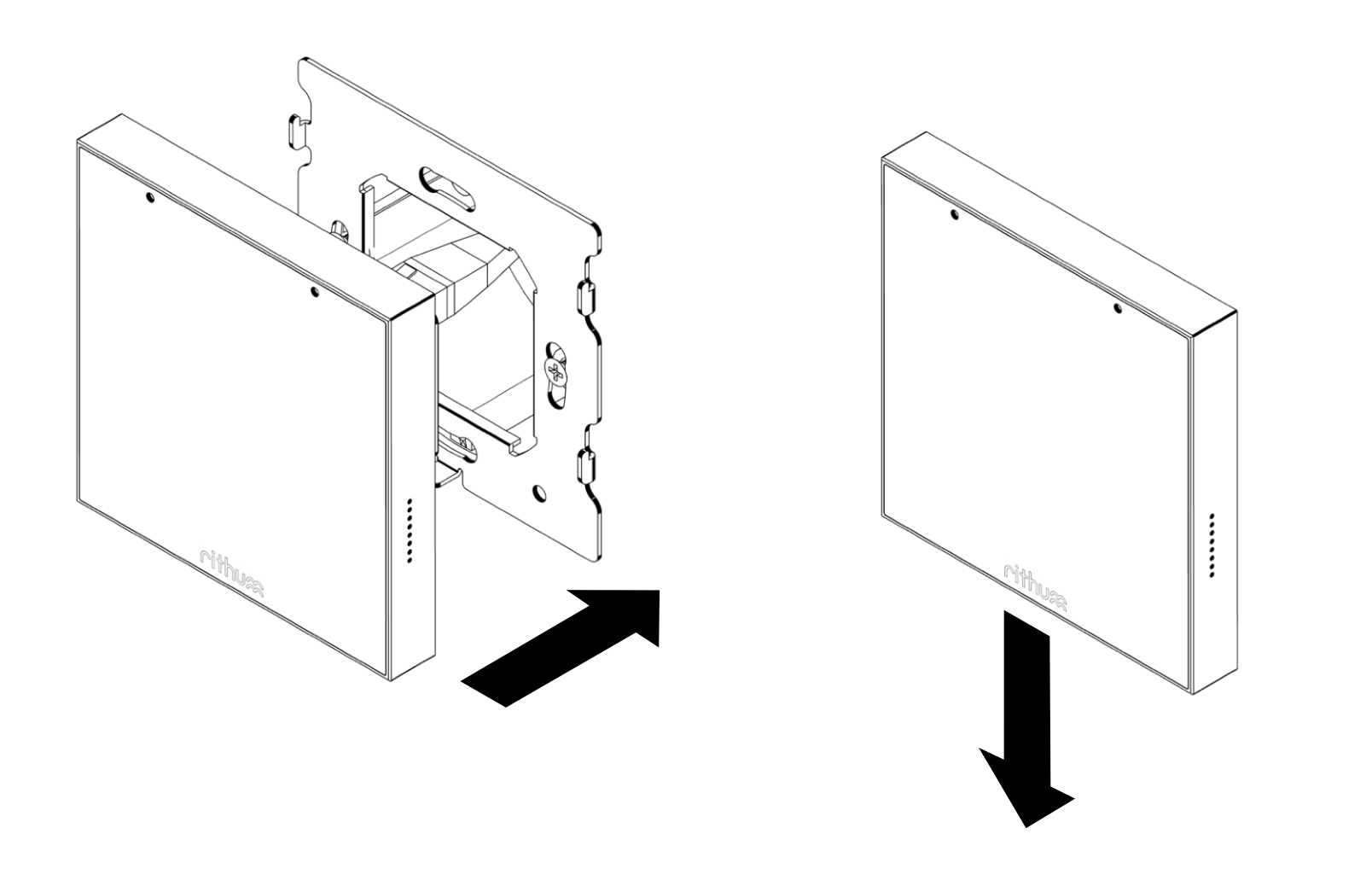

3. Mount the device to the wall plate

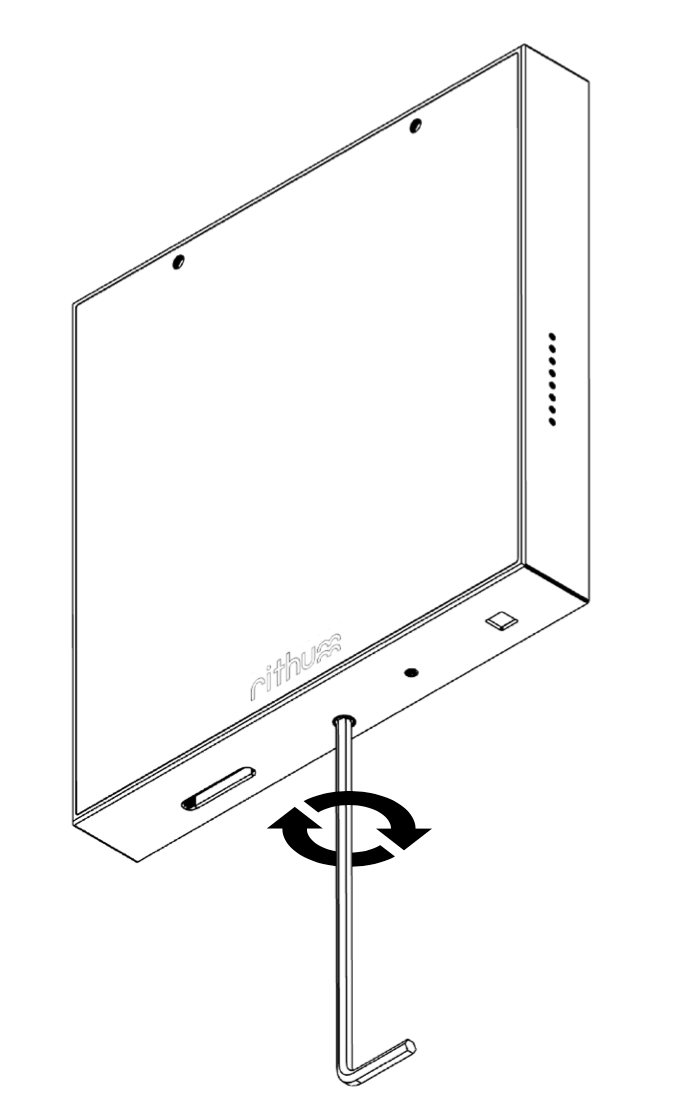

4. Tighten off the locking screw. Note it should only be finger tight.

5. If removal of the device is required, repeat step #1 in situ.
