These instructions are for Rithum Switch Pro, RSP-01.

You can find the PDF specification sheet for Rithum Switch Pro which contains these instructions and more here.

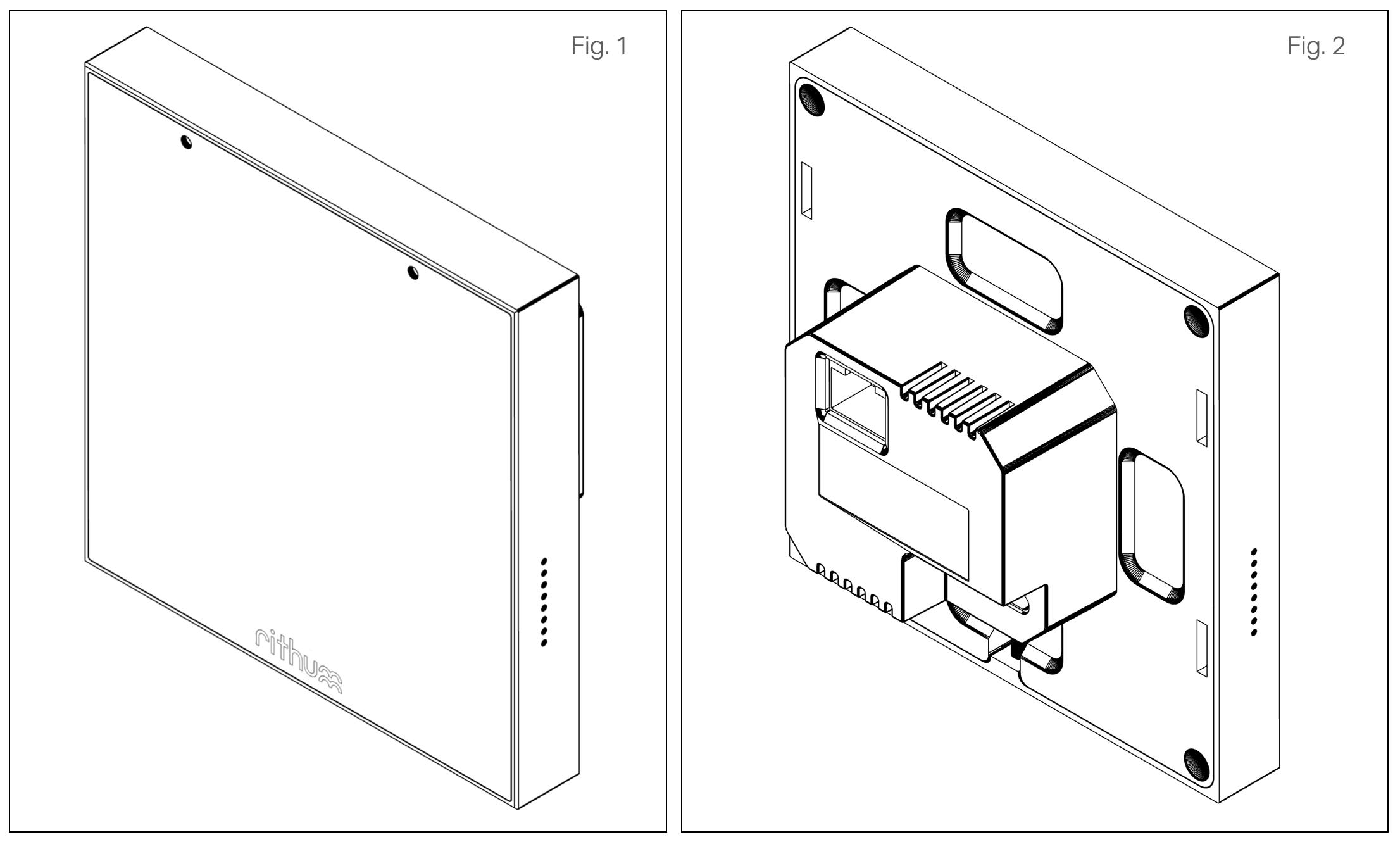

Description

Rithum Switch Pro is a smart home control panel and thermostat which directly replaces a light switch and provides control of third party systems.

To correctly utilise the features of Rithum Switch Pro, you will need third party systems such as lighting, audio or climate control systems, although there are some climate features built-in.

Specification

PoE: IEEE 802.3af

Power draw Max: 10W

Power consumption standby: 0.7W

Wi-Fi: 2.4GHz 802.11bgn (Wi-Fi 4)

Environment: For indoor use only

Back box: EU 71mm round or UK 71mm square

Back box depth: 35mm (25mm in some scenarios)

Environment: -15c to 45c

For PSTI SoC, including the defined support period for this product, please see here. To report security issues, please see https://rithumhome.com/security.txt

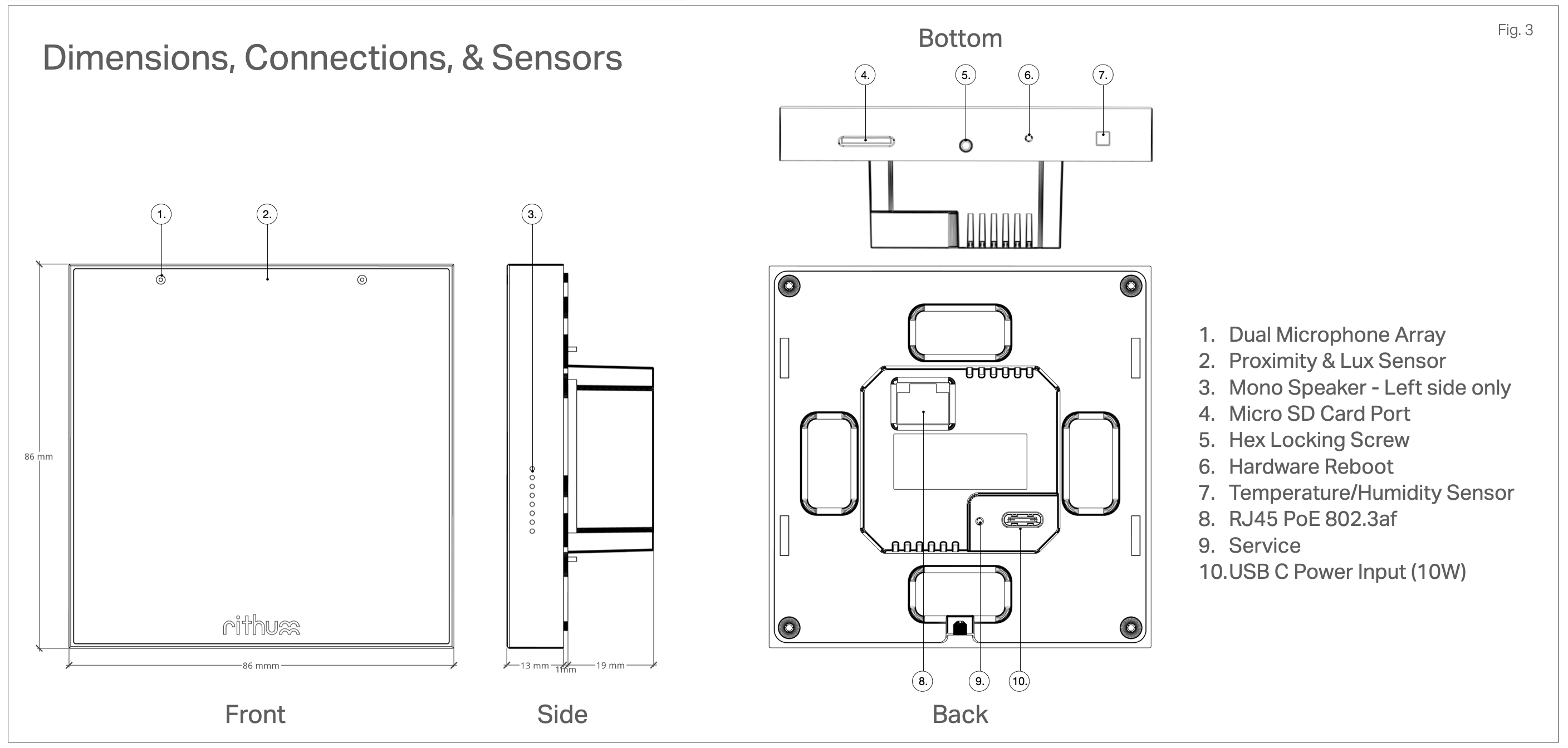

Dimensions & Connections

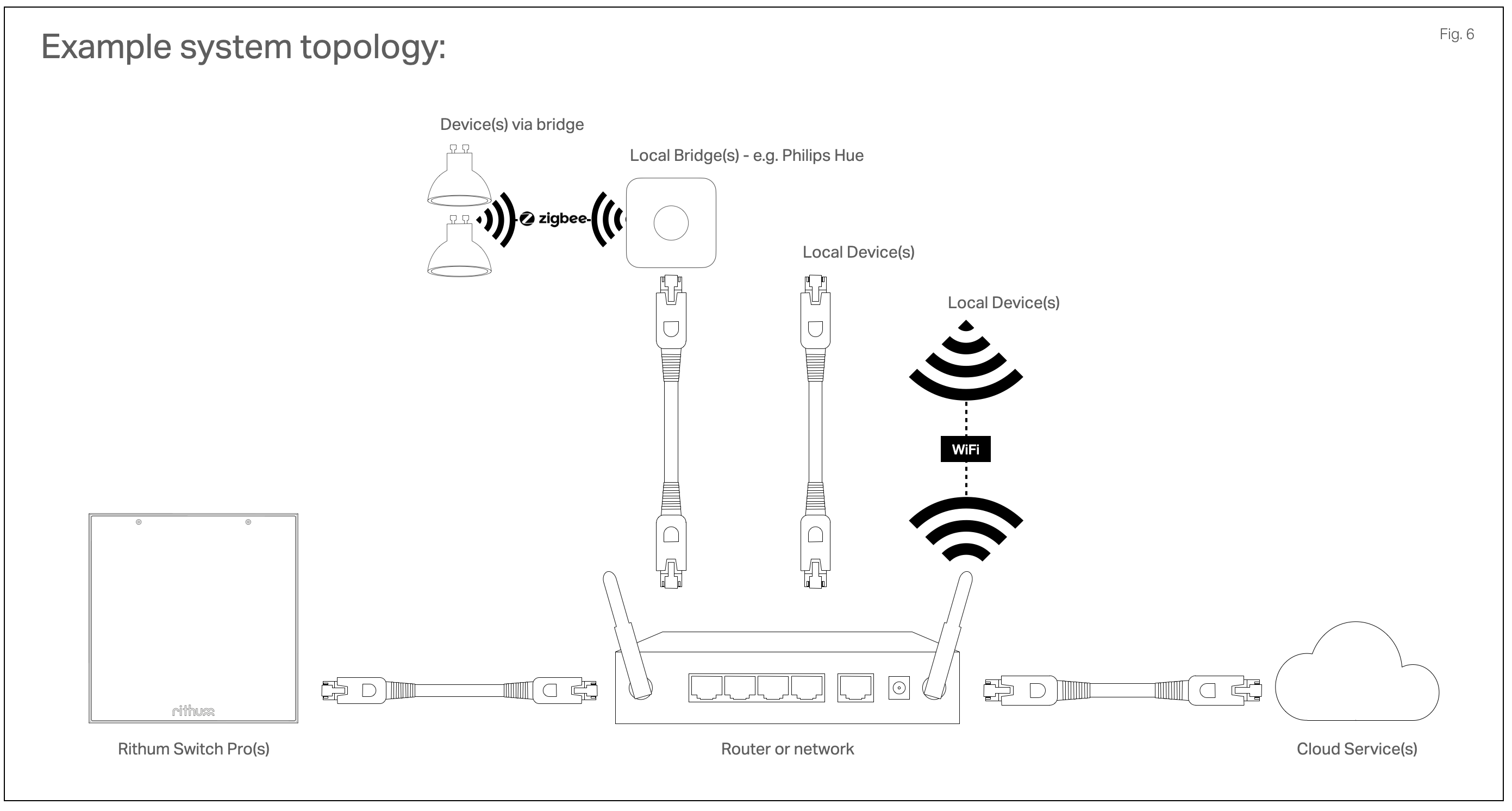

System Topology

Rithum Switch Pro integrates with third party systems over Ethernet or Wi-Fi. It is important that you have a reliable and strong Wi-Fi signal and upgrading your ISP supplied equipment highly recommended.

Rithum integrates with multiple lighting, audio, climate and other systems. For more about what Rithum works with, please see our website which also contains more system-specific topologies.

You may need one or more software plugins for Rithum to integrate with certain systems or provide certain features

Multiple Rithum Switch Pros can communicate with these systems over the same network (subject to network limitations).

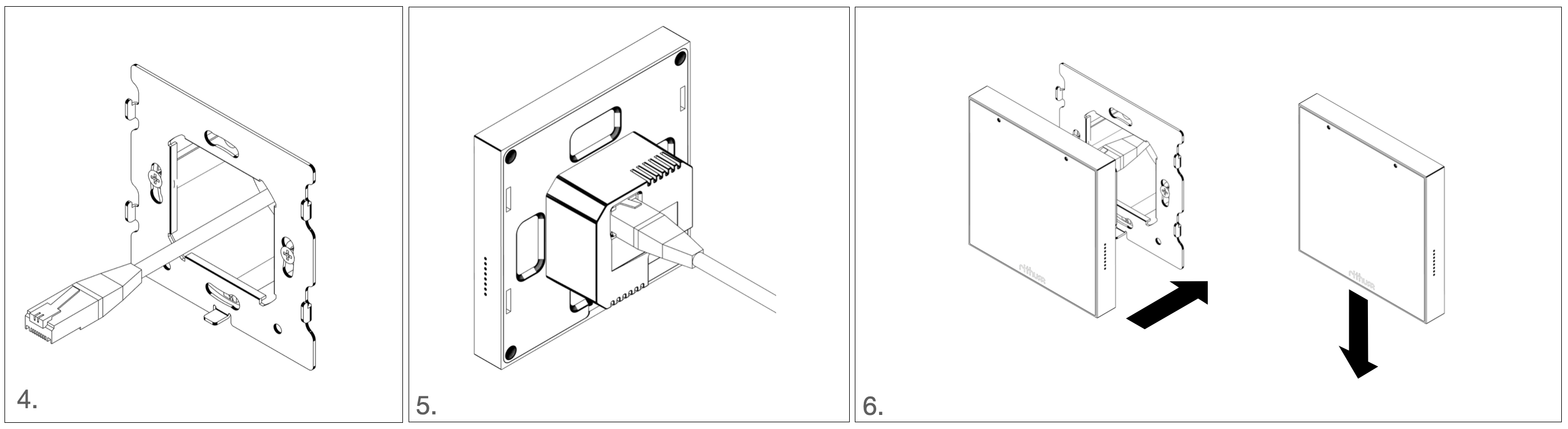

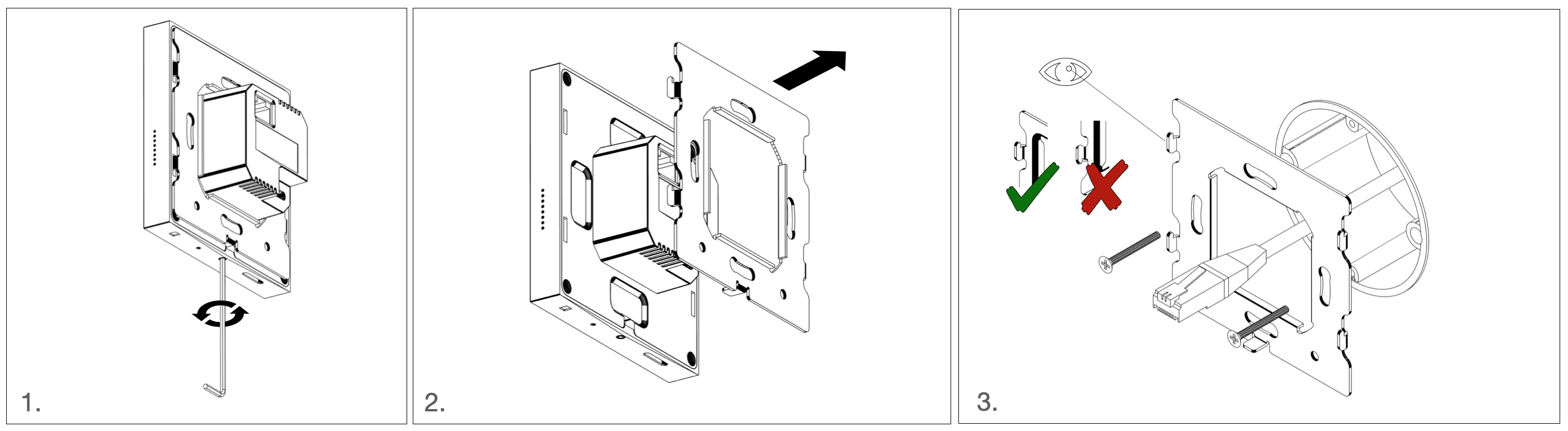

Installation

If you need help separating the wall plate from the Rithum Switch, then see this article.

WARNING: Do not force Rithum Switch into the back box. Although seating it onto the wall plate requires a firm movement, it should not be forced. Ensure your back box is capable of having the Rithum Switch seated, e.g. by trimming parts that might block its seating.

For extended locking screw instructions, see the guide on Locking Screw Usage.

Once you have installed and powered Rithum Switch, it's time to read this article on Setup and Use.

FCC Statement

FCC ID： 2BF4Y-RS-01

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

The device has evaluated to meet general RF exposure requirement. The device can be used be in portable exposure without restriction.
