Lutron RadioRA 3 Plugin

Requirements

• A Lutron RadioRA 3 processor on the same network as Rithum Switch

Current Capabilities

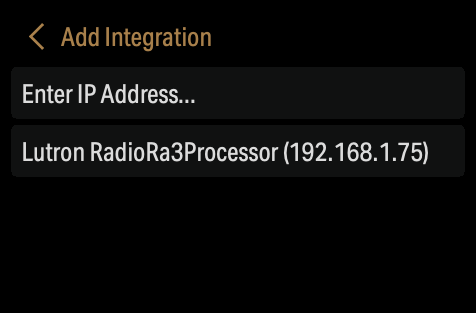

• Connect to the Lutron RadioRA 3 by entering the IP address of the device or selecting from the discovered list (see image below)
• Scenes can be selected for on/off/toggle control of individual lights or zones of lights
• Scenes can be selected to control the configured buttons of physical or virtual keypads
• Scenes can be selected for up/down/stop control of shades or to set their position to 25%, 50% or 75% open
• Areas containing light devices will be available on Rithum Switch to select as areas to include in the Levels screen

Current Limitations

• Each Lutron RadioRA3 processor can support up to 10 concurrent connections. Note that the smart phone app when it comes online will consume one connection whilst active. Please contact us if you require support for more than 10 connections in one project.

Current Version

1.0.1

General Release Start Date: 9th June 2026

In This Release

• Fix for the stop blinds scene

Previous Versions

1.0.0

General Release Start Date: 3rd June 2026

In This Release

• First release
