Loxone Release Notes

Requirements

• A Loxone Miniserver on the same network as Rithum Switch / Pro configured with Loxone Config V15+

• The Loxone plugin installed on Rithum Switch / Rithum Switch Pro
• Rithum minimum firmware version 3.11

Current Capabilities

Integration

Each Rithum Switch / Pro integrates with one or more Loxone Miniservers via IP as an authenticated user (whether unique per switch or the same user across multiple switches). Integration is via persistent websocket and supports both HTTP and HTTPS.

Scenes Screen buttons (or sub scenes of group buttons)

Select from the following actions for rooms configured in Loxone:

• Toggle lights on/off
• Set a lighting mood
• Control blinds (Fully up, Fully down, toggle Up/Stop, toggle Down/Stop, cycle Up/Stop/Down/Stop)
• Execute a Scene configured in Loxone

Levels Screen

Select rooms to include on the Levels screen where you can then control on/off & brightness at the room level or for individual circuits

Gestures

Select from the following room actions for the ’Standby screen hold’ gesture:

• Toggle lights on/off
• Toggle lights between off and a specified mood
• Cycle blinds Up/Stop/Down/Stop
• Execute a Scene configured in Loxone

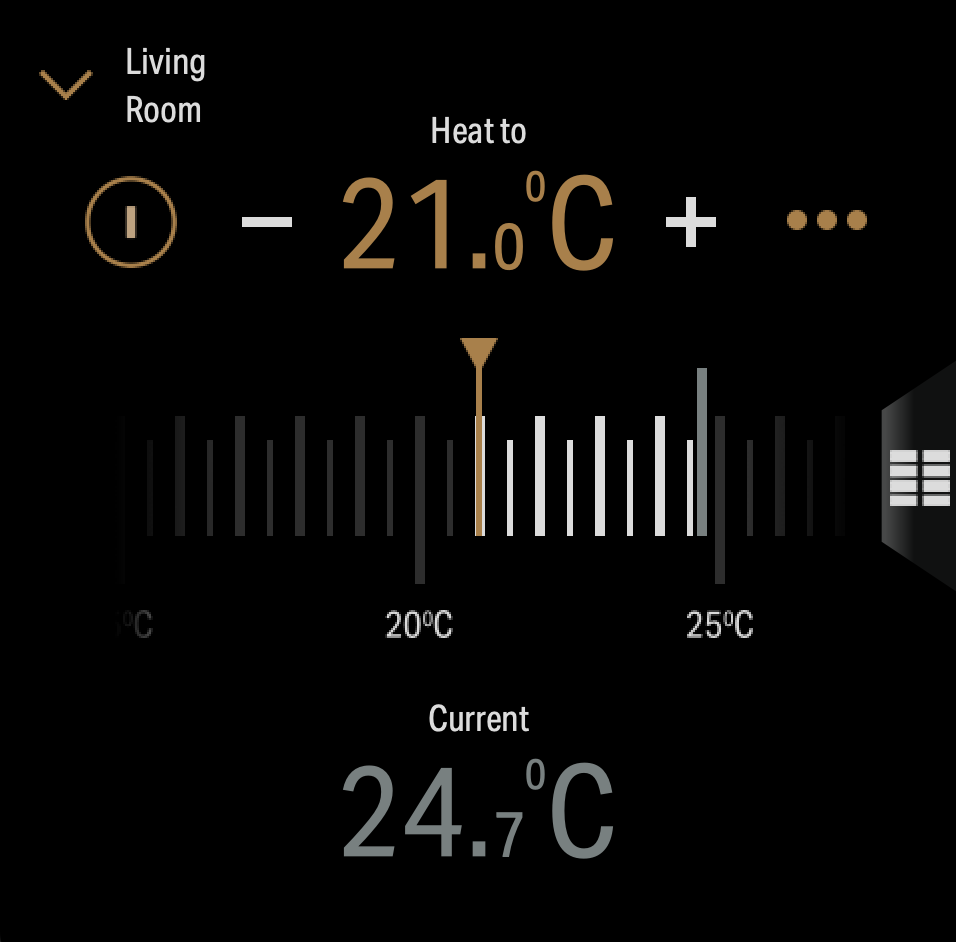

Temperature

Pull current temperature from Rithum Switch to Loxone. The temperature input will need to be configured in Loxone Config as follows:

1. Download the temperature input template file attached at the bottom of this page.

2. In Loxone Config select 'Virtual Inputs' then 'HTTP Device Templates' on the menu bar:

Select 'Import Template...' then browse for and select the downloaded template file.

3. Select 'HTTP Device Templates' again and now there should be a 'Rithum Temperature Input' option to select. Select this to add a new temperature input.

4. As prompted, edit the IP address (highlighted in the following screen shot) in the input properties to be the IP address of Rithum Switch (shown on the connected network settings screen on Rithum Switch):

5. Add the temperature input to a page to connect it to the Intelligent Room Controller for the required room as shown here:

Limitations

• Levels screen control of RGBW circuits is on/off & brightness level only, the colour can’t be adjusted
• Configuration changes made in Loxone may take up to 1 minute before being reflected on Rithum Switch

Current Version

1.0.0

General Release Start Date: 10th December 2024

In This Release:

• Initial release
